TELESCOPIC BELT CONVEYOR
Telescopic Belt Conveyor is a conveyor system that can be extended to loading and unloading to the shipping containers or trucks. It can use the least operators, save time, more high efficiency than operator. The telescopic belt conveyor is one type of conveyor that help to convey the product more easily and speedy.
- The telescopic belt conveyor can work in accordance with the ergonomics working conditions.
- Faster loading and unloading the product
- Can use with every type of trucks
- Easily to use and safety
- The capacity payload to convey the product < 80 kg./m.
- Convenient and easy access for maintenance

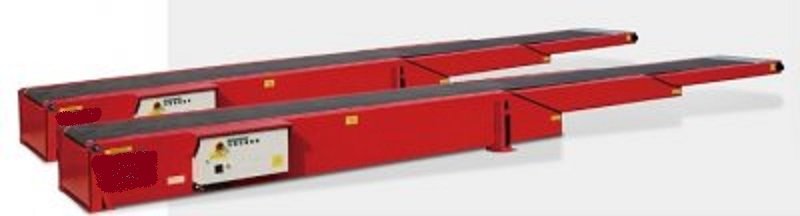

3 SECTIONS CONVEYOR
SPECIFICATION
| Base part (L1) mm. | Extended part (L2) mm. | Total length(L) mm. | Height (A) mm. | Total width (B) mm. | Belt length (C) mm. |
| 2500 | 2700 | 5200 | 555 | C +345 | 600/800 |
| 3000 | 4000 | 7000 | 555 | C +345 | 600/800 |
| 4000 | 5400 | 9400 | 555 | C +345 | 600/800 |
| 4500 | 6000 | 10500 | 555 | C +345 | 600/800 |
| 5000 | 7000 | 12000 | 555 | C +345 | 600/800 |
| 6000 | 8400 | 14400 | 555 | C +345 | 600/800 |

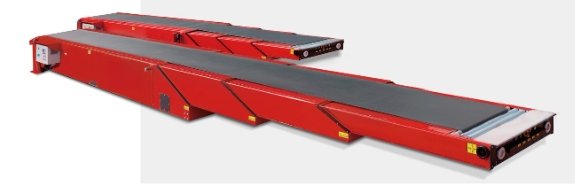

4 SECTIONS CONVEYOR
SPECIFICATION
| Base part (L1) mm. | Extended part (L2) mm. | Total length (L) mm. | Height (A) mm. | Total width (B) mm. | Belt length (C) |
| 4000 | 7000 | 11000 | 725 | C +390 | 600/800 |
| 5000 | 10000 | 15000 | 725 | C +390 | 600/800 |
| 6000 | 12300 | 18300 | 725 | C +390 | 600/800 |
| 7000 | 15000 | 22000 | 755 | C +390 | 600/800 |
| 7500 | 16000 | 23500 | 755 | C +390 | 600/800 |
5 SECTIONS CONVEYOR
SPECIFICATION
| Base section (mm.) | Extension (mm.) | Total length (mm.) | Heigth (mm.) | Body width (mm.) | Belt width (mm.) |
| 6000 | 16000 | 22000 | 765 | C +440 | 600/800 |
| 7500 | 21000 | 28500 | 850 | C +440 | 600/800 |
